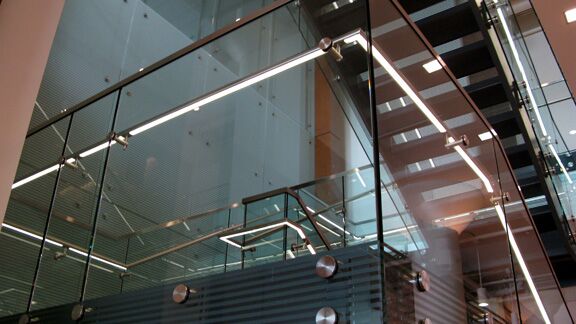

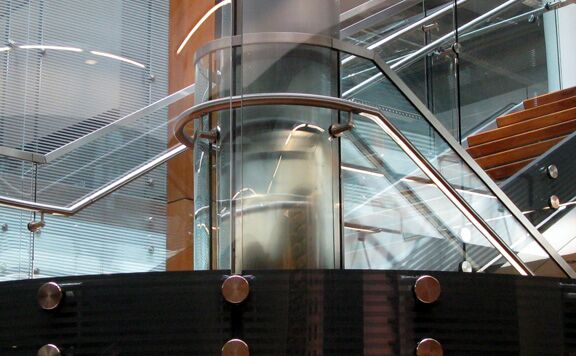

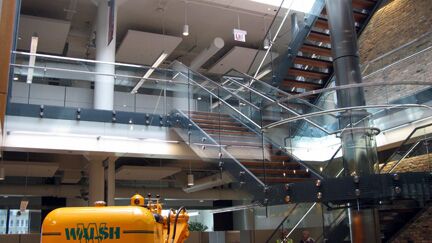

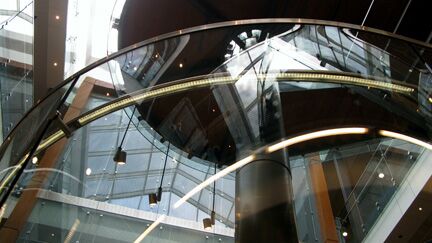

Boss Mount Rail Design

Boss Mount

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

GENERAL OPTIONS:

• Illuminated LEDRail
• Non-Illuminated
• Curved or Spiral

GLASS OPTIONS:

• Sania Inline Button Retainer 1/2” Tempered Glass
• 3/4” Tempered Glass

HANDRAIL OPTIONS:

• 1.67” O.D. Stainless Steel (1 ¼” Pipe)
• 1.90” O.D. Stainless Steel (1 1/2” Pipe)
• 1.50” Square Stainless Steel
• 1.66” O.D. Aluminum (1 ¼” Pipe)
• 1.90” O.D. Aluminum (1 1/2” Pipe)

LENS OPTIONS:

• Clear w/ Prismatic Diffusers
• Opal w/ White Diffusers
• Clear w/ No Diffusion (Asymmetric)
• Clear (Dot System)

LIGHTING DISTRIBUTION OPTIONS:

• Symmetric
• Asymmetric

LINEAR:

• Warm White 2700K CCT
• Warm White 3000K CCT
• White 4000K CCT
• Amber
• RGBW

Dot SYSTEM:

• Warm White 2700K CCT
• Warm White 3000K CCT
• White 4000K CCT

LINEAR:

• High Output (3.87W / 443lm per ft.)
• Medium Output (2.77W / 334lm per ft.)
• Low Output (1.34W / 173lm per ft.)

DOT SYSTEM:

• 120lm each
• 100lm/W

Structural Glass

316 Stainless Steel

• w/#6 (320 grit) Satin Finish
• w/#8 High Polish Finish

Aluminum w/Powder Coat Finish

• RAL Color
• Custom Colors
• Anodized Effects
• Simulated Wood Grain

BOSS MOUNT RAILING ESTIMATION FORM

IP67
