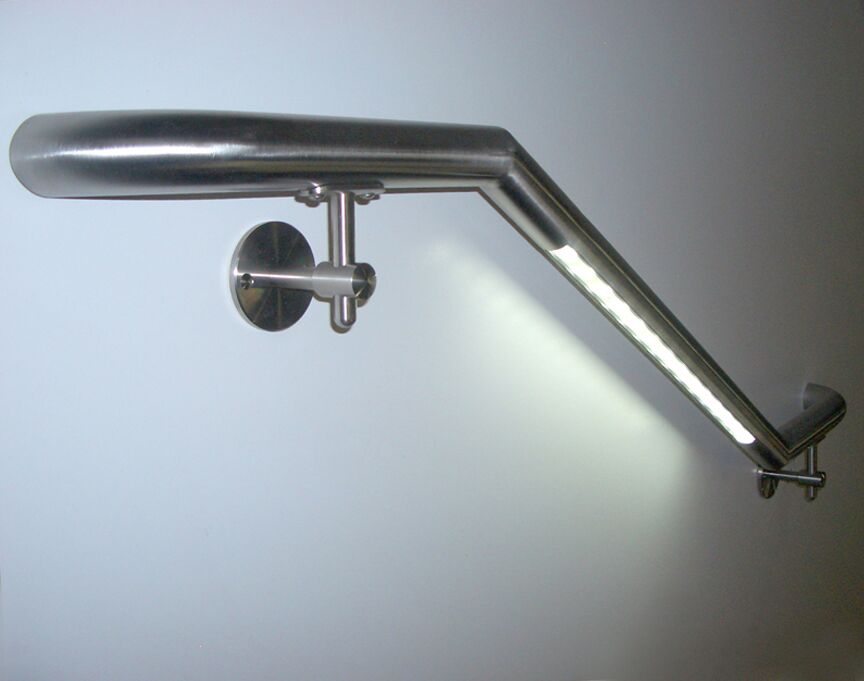

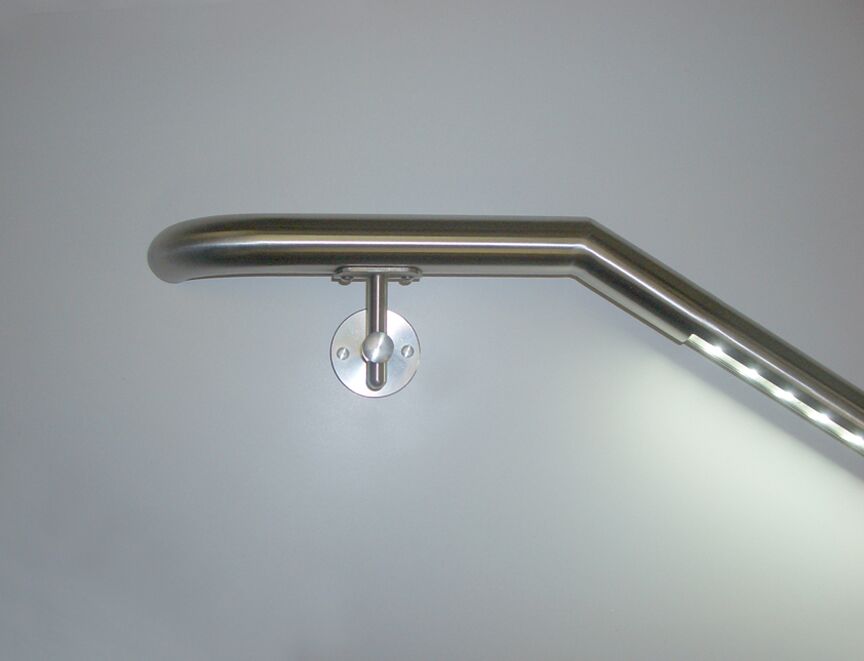

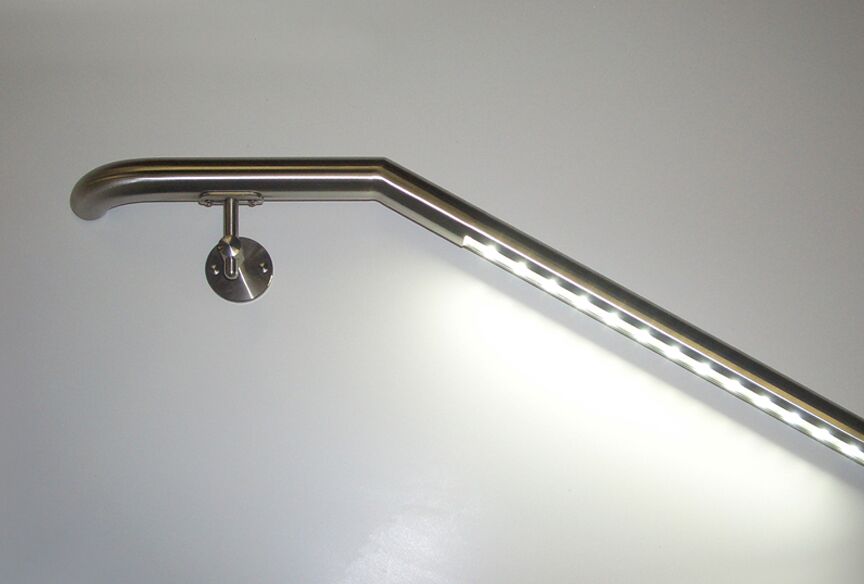

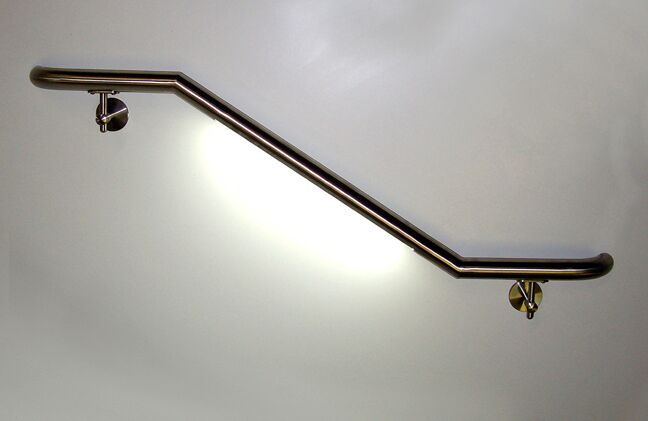

Standard Wall Rail Design

Model Name

MYRIS

Application

Wall Mount

Material for Hand Rail

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

Material for Cap Rail

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

Options

GENERAL OPTIONS:

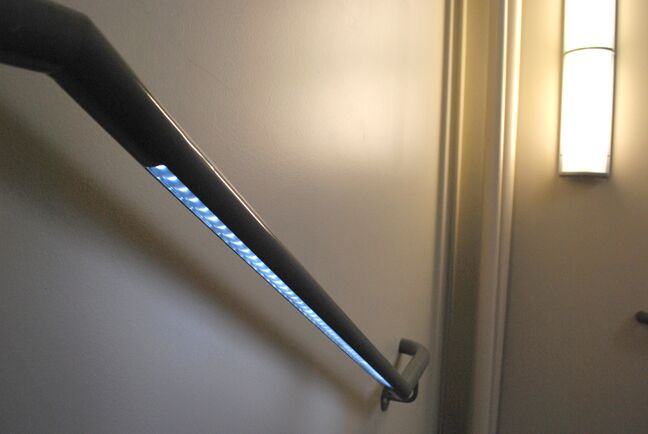

  • Illuminated LEDRail
  • Non-Illuminated
  • Curved or Spiral

HANDRAIL OPTIONS:

  • 1.67” O.D. Stainless Steel (1 ¼” Pipe)
  • 1.90” O.D. Stainless Steel (1 1/2” Pipe)
  • 1.50” Square Stainless Steel
  • 1.66” O.D. Aluminum (1 ¼” Pipe)
  • 1.90” O.D. Aluminum (1 1/2” Pipe)

LENS OPTIONS:

  • Clear w/ Prismatic Diffusers
  • Opal w/ White Diffusers
  • Clear w/ No Diffusion (Asymmetric)
  • Clear (Dot System)

LIGHTING DISTRIBUTION OPTIONS:

  • Symmetric
  • Asymmetric

Colors Available

LINEAR:

  • Warm White 2700K CCT
  • Warm White 3000K CCT
  • White 4000K CCT
  • Amber
  • RGBW

Dot SYSTEM:

  • Warm White 2700K CCT
  • Warm White 3000K CCT
  • White 4000K CCT

Lighting levels

LINEAR:

  • High Output (3.87W / 443lm per ft.)
  • Medium Output (2.77W / 334lm per ft.)
  • Low Output (1.34W / 173lm per ft.)

DOT SYSTEM:

  • 120lm each
  • 100lm/W

Mounting Options

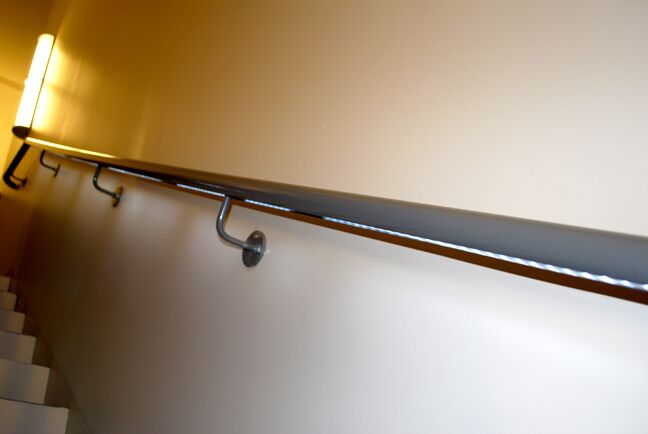

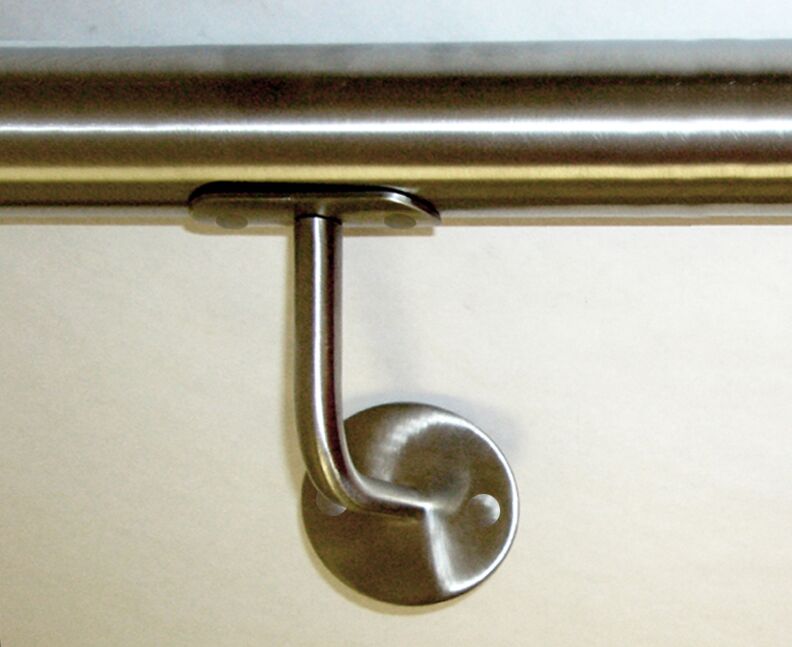

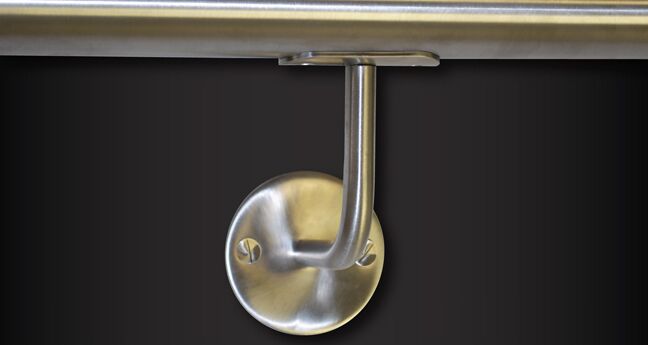

Wall Mount, Post Mount, Glass Mount

Finish

316 Stainless Steel

  • w/#6 (320 grit) Satin Finish
  • w/#8 High Polish Finish

Aluminum w/Powder Coat Finish

  • RAL Color
  • Custom Colors
  • Anodized Effects
  • Simulated Wood Grain

IP Rating

IP67
