Dual Glass Panel Retainer Design

Description

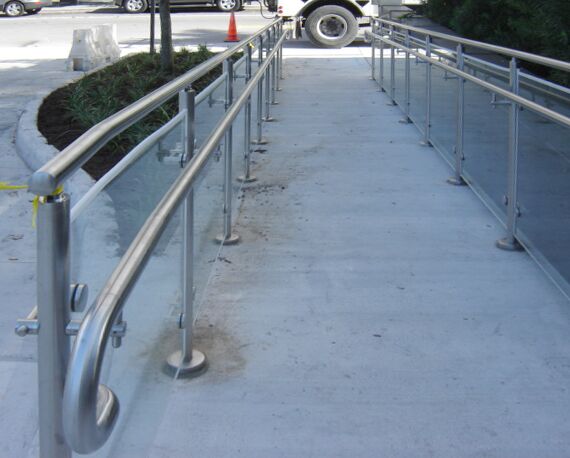

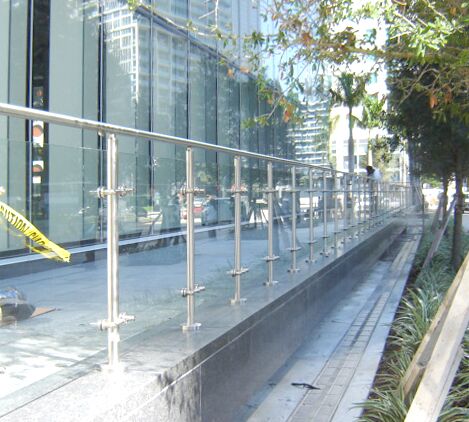

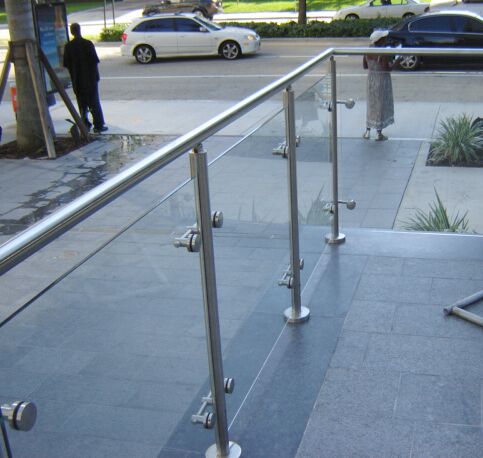

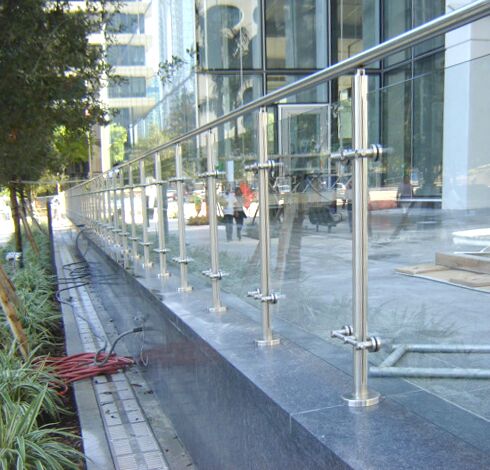

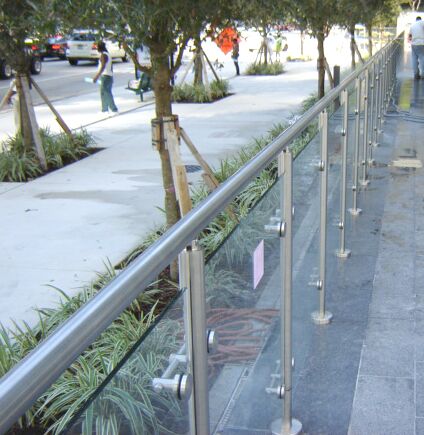

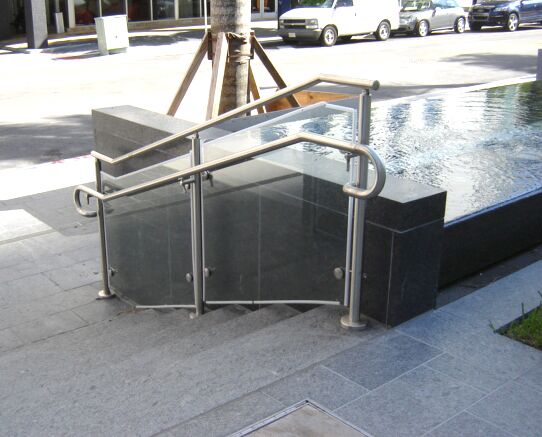

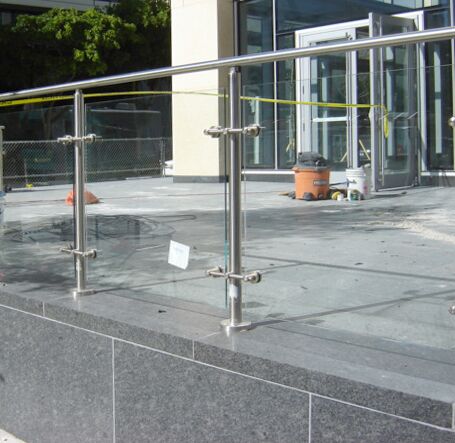

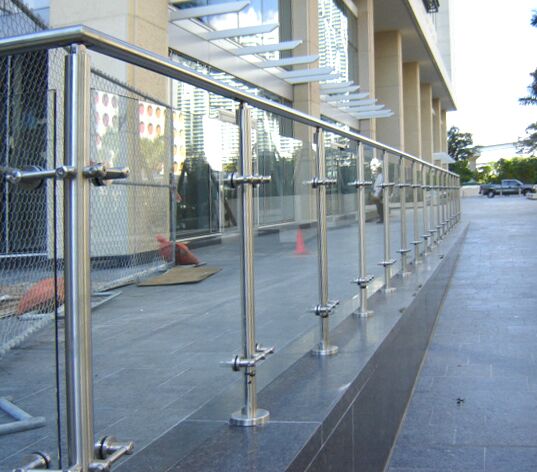

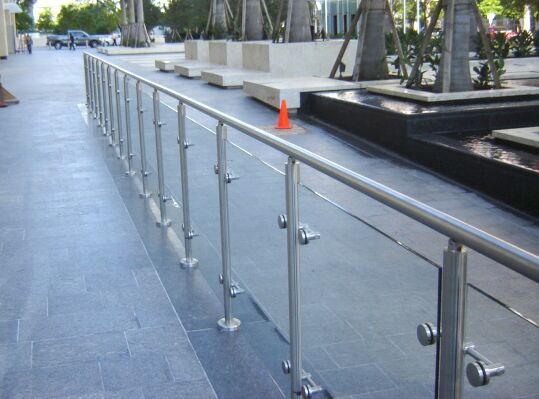

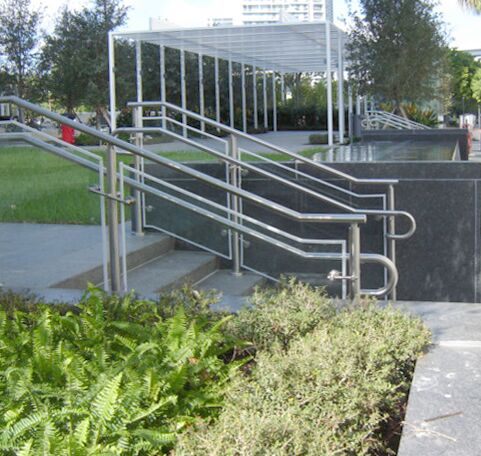

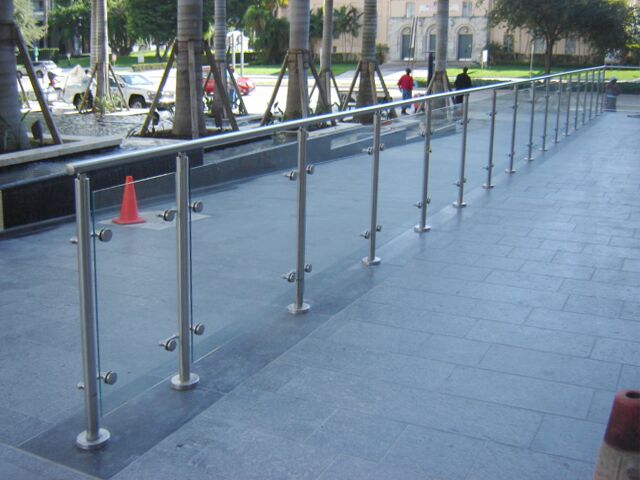

STRIA Dual Glass Panel Retainer

Using offset button mounts, for 3/8" or 1/2" tempered glass panel infill, provides an additional level of uniqueness to an already innovative railing design.

Model Name

STRIA

Application

Free Standing

Material for Posts

316 Stainless Steel, 6061 Aluminum

Material for Hand Rail

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

Material for Cap Rail

316 Stainless Steel, 6061 Aluminum (non-illuminated), 6063 Aluminum (illuminated)

Options

GENERAL OPTIONS:

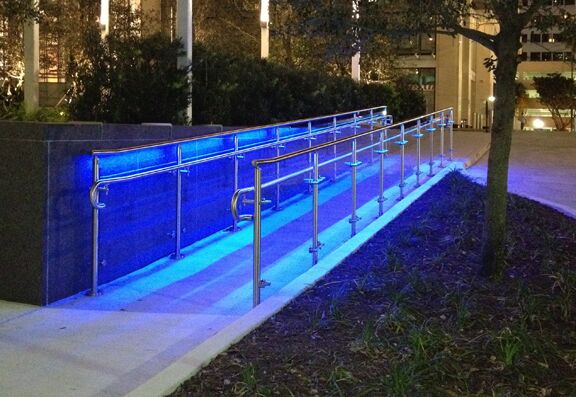

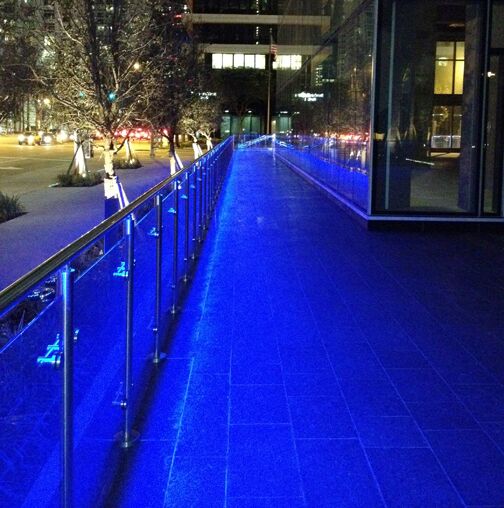

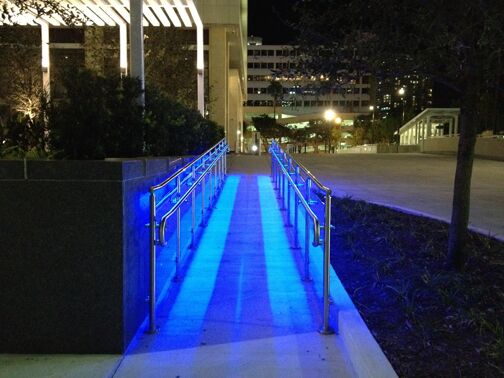

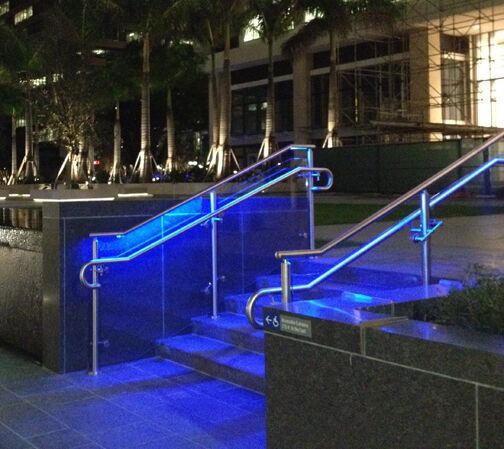

  • Illuminated LEDRail
  • Non-Illuminated
  • Curved or Spiral

GLASS PANEL OPTIONS:

  • Stria Offset Button Retainer 3/8” Tempered Glass
  • Stria Offset Button Retainer 1/2” Tempered Glass

HANDRAIL OPTIONS:

  • 1.67” O.D. Stainless Steel (1 ¼” Pipe)
  • 1.90” O.D. Stainless Steel (1 1/2” Pipe)
  • 1.50” Square Stainless Steel
  • 1.66” O.D. Aluminum (1 ¼” Pipe)
  • 1.90” O.D. Aluminum (1 1/2” Pipe)

LENS OPTIONS:

  • Clear w/ Prismatic Diffusers
  • Opal w/ White Diffusers
  • Clear w/ No Diffusion (Asymmetric)
  • Clear (Dot System)

LIGHTING DISTRIBUTION OPTIONS:

  • Symmetric
  • Asymmetric

Colors Available

LINEAR:

  • Warm White 2700K CCT
  • Warm White 3000K CCT
  • White 4000K CCT
  • Amber
  • RGBW

Dot SYSTEM:

  • Warm White 2700K CCT
  • Warm White 3000K CCT
  • White 4000K CCT

Lighting levels

LINEAR:

  • High Output (3.87W / 443lm per ft.)
  • Medium Output (2.77W / 334lm per ft.)
  • Low Output (1.34W / 173lm per ft.)

DOT SYSTEM:

  • 120lm each
  • 100lm/W

Mounting Options

Embed Mount, Flange Mount, Fascia Mount

Finish

316 Stainless Steel

  • w/#6 (320 grit) Satin Finish
  • w/#8 High Polish Finish

Aluminum w/Powder Coat Finish

  • RAL Color
  • Custom Colors
  • Anodized Effects
  • Simulated Wood Grain

STRIA ESTIMATION FORM

IP Rating

IP67
